Water Detector down to 250m (820 ft) OKM GeoSeeker
- Geoelectric water and void detector: Determines the ground resistance down to a depth of 250 m (820 ft) and visualizes the measured values in 3D
- Detection depth: With this technology customers found water down to 250 m (820 ft) deep
- Use cases: Water detection, cavity detection, geotechnical engineering
- Operating modes: Active/Passive
- Detectable structures: Water deposits, water-bearing gravel, cavities
plus VAT, shipping and fees
Geoelectrical Measuring Procedure
3D Visualization
Color Display / Touchscreen
Internal Memory
Rechargeable High-Capacity Battery
Multilingual Operation
Wireless Technology
Water and Void Detection down to 250 m (820 ft) Depth
Are you looking for underground water resources or hidden cavities up to depths of 250 meters (820 ft)? GeoSeeker is a professional geoelectrical water detector and cavity detector that measures the ground resistivity and visualizes its scan data in incredible 3D graphics. It is a very mobile and easy to operate geoelectrical detector designed and manufactured in Germany.

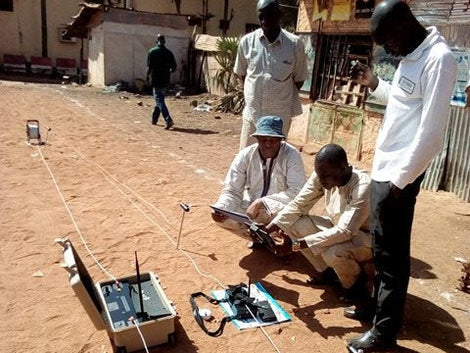

Water detector OKM GeoSeeker was handed over in December 2017 to "Aktion Pro Afrika" - a nonprofit organization - and already provides successful measurement results during the search for underground ...
Read moreGeoSeeker utilizes a geoelectrical measurement procedure based on Schlumberger to read the apparent resistivity of the ground. Based on that ground resistivity the detector is capable to locate underground water deposits, water-bearing gravel and groundwater level as well as cavities like caves, tunnels, chambers and the like. Thus, the geophysical detector can be deployed as water finder or cavity detector at the same time.

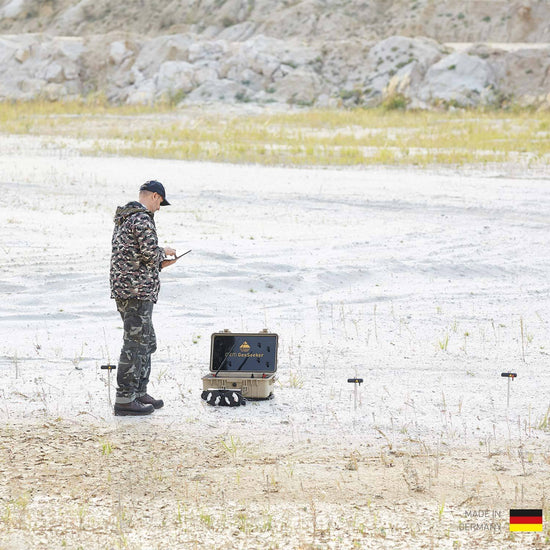

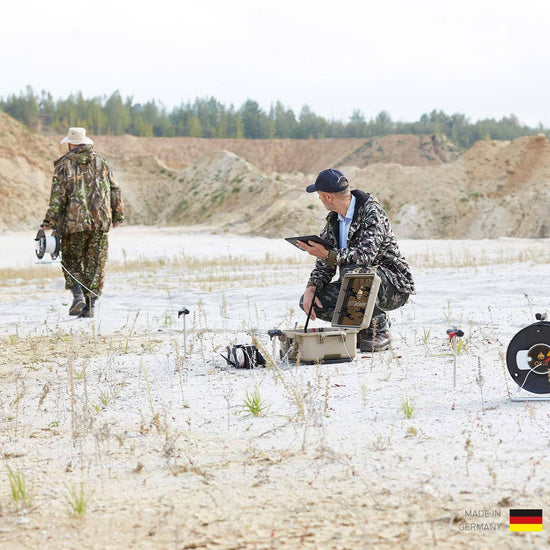

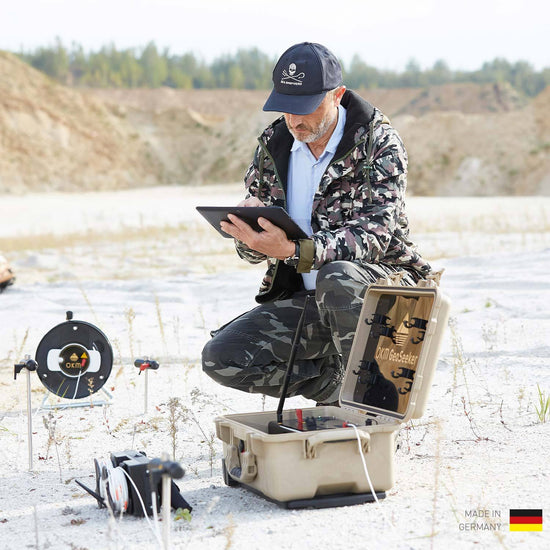

Water Detection with GeoSeeker
GeoSeeker hardware components are completely controlled by a modern Android Tablet PC. All commands and measurement results are transferred wireless via Wi-Fi. Using the pre-installed software application, you simply select one of three supported scan modes:
Active Scan (Accurate)
In the Active Scan mode, GeoSeeker utilizes two electrodes to inject electrical power into the underground soil. Two additional electrodes are measuring the potential difference (fall of voltage) at specific scan points to calculate the final resistivity value.
This mode is used to detect underground water deposits, hidden caves or even impervious layers and barriers within the underground soil. In active scans, you will be able to define a specific depth range in that you are going to conduct your measurement. So you will define a starting and ending depth between 5 meters (16 feet) and 250 meters (820 feet).
Active Scan (Quick)
This scan mode is a quick version of the Accurate Scan. It is also injecting electrical current into the underground and measuring the potential difference (fall of voltage) to calculate the resistivity of the ground.
Passive Scan
In the Passive Scan mode, the GeoSeeker only utilizes two electrodes to read the natural occurring voltage of the underground (no electrical power is injected into the underground). This mode is used to detect underground flowing water only.
Configure and Conduct Scans via GeoSeeker App
The GeoSeeker application for Android provides simple step-by-step instructions to assist you in completing the measurement. You simply follow these pictured instructions until your measurement has been finished.
Analyze Scans in the App and in Visualizer 3D Studio
After completing the measurement, a 3D representation of the measured values is displayed on the tablet screen. Various color adjustment options allow optimizing the visualization of detected underground water deposits, water-bearing gravel and groundwater level (shown in blue) as well as cavities, caves, tunnels, chambers or impervious layers (shown in reddish colors).
Thanks to the major update of Visualizer 3D Studio in 2023, GeoSeeker measurements can now also be displayed, optimized and analyzed in greater detail in the 3D software. The new render view Volumetric 3D is a major milestone for GeoSeeker users.
Easy-to-transport Water Detector

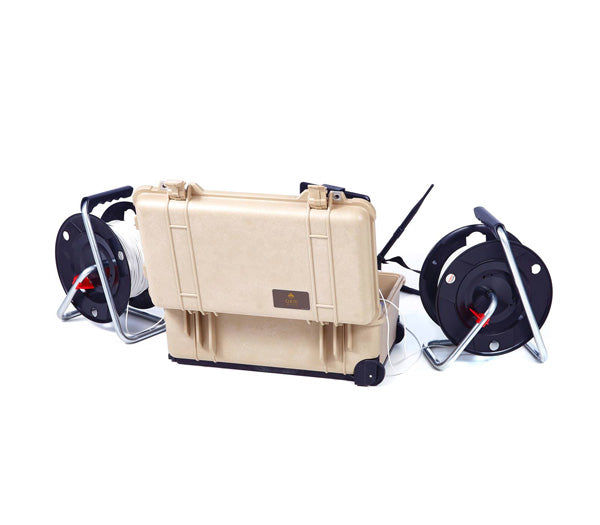

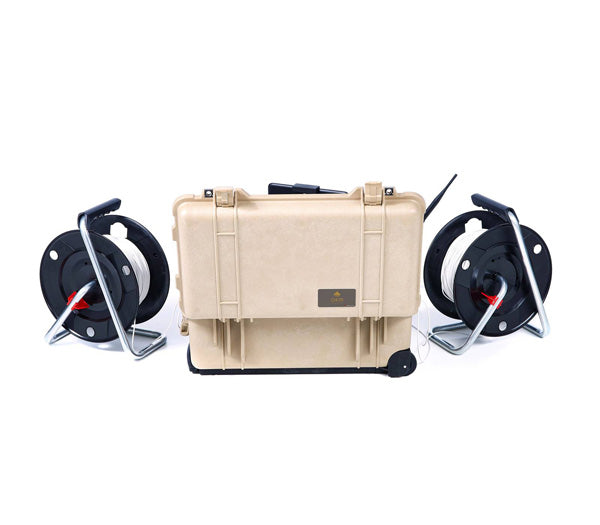

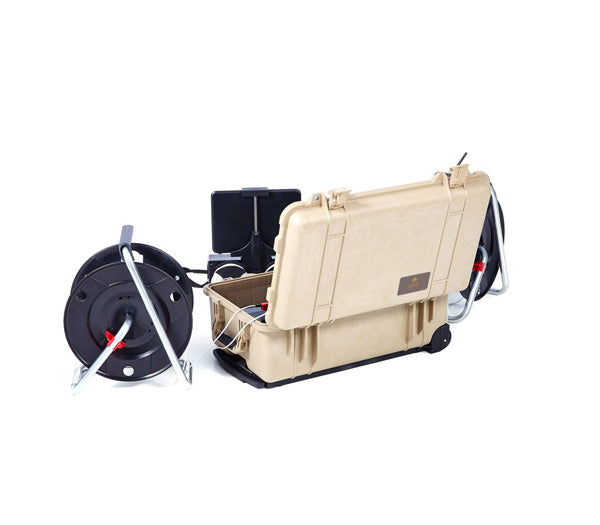

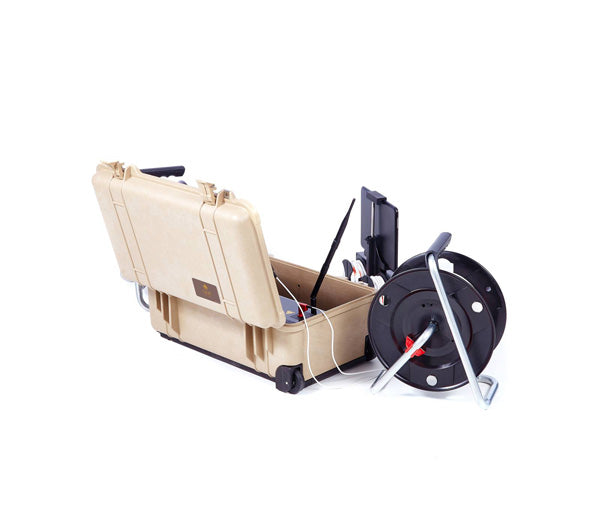

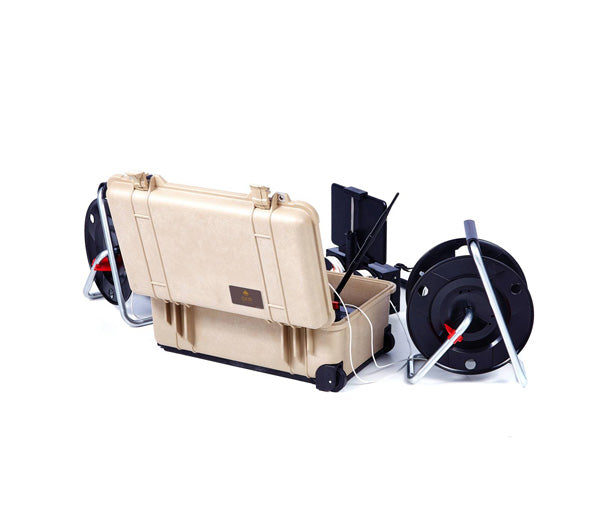

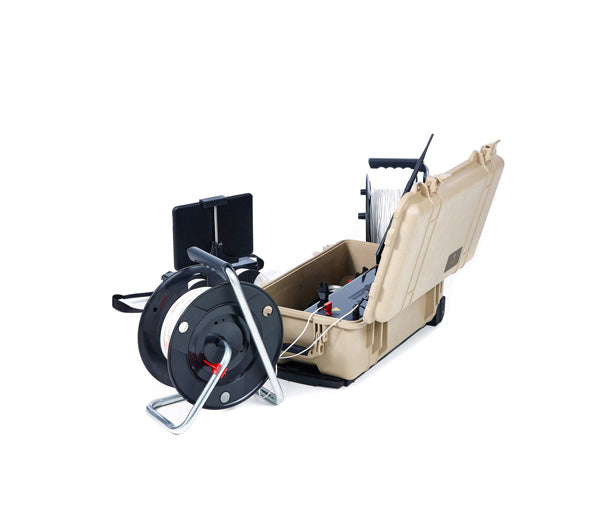

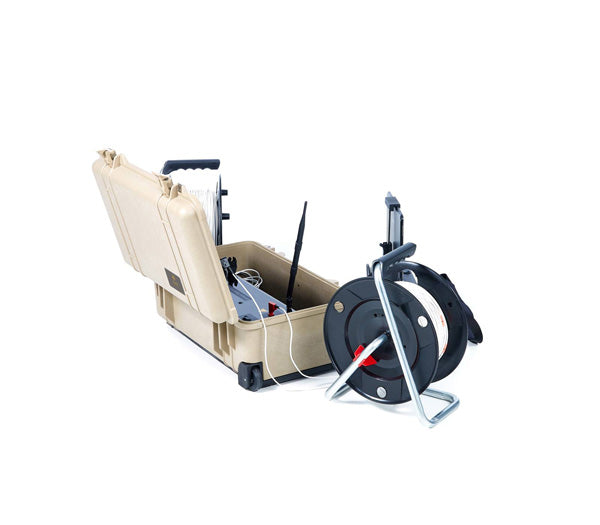

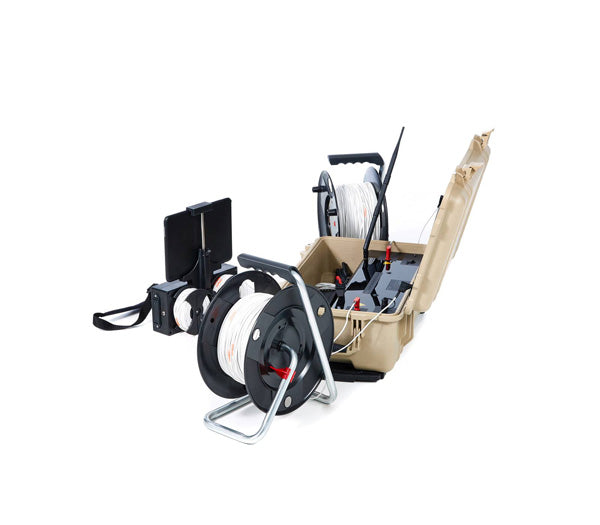

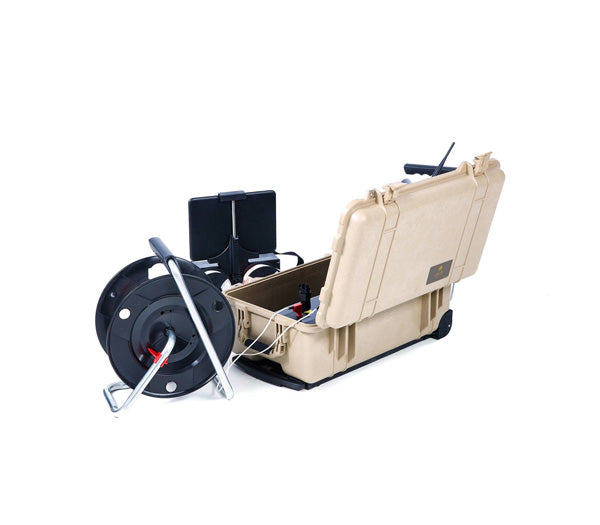

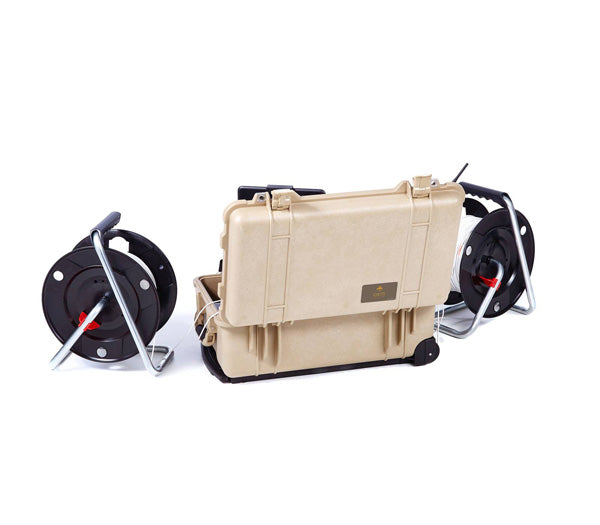

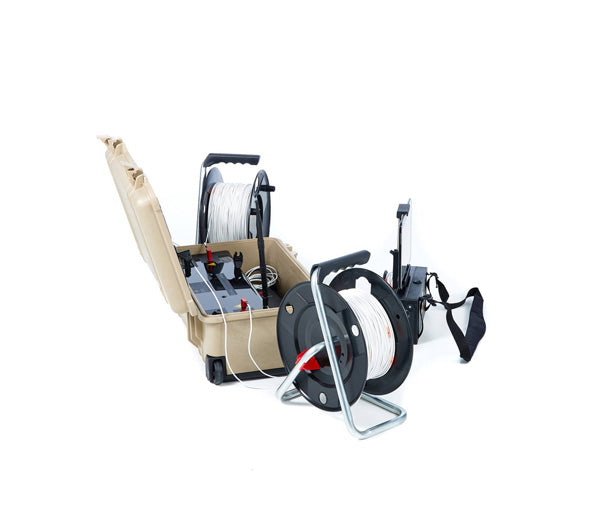

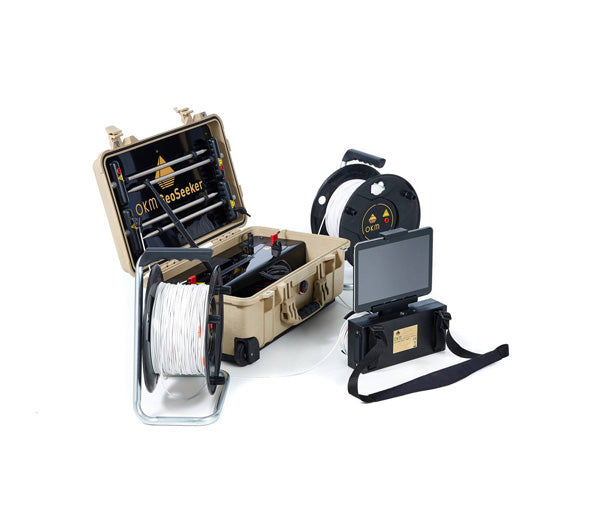

The GeoSeeker hardware is integrated in a waterproof and shock-resistance Protector case. Thus, your geoelectrical equipment is well-packed and always ready for transportation.
Water Detection / Well Building
Geotechnical Engineering
Cavity Detection
Agriculture
Archaeology
OKM Search Services

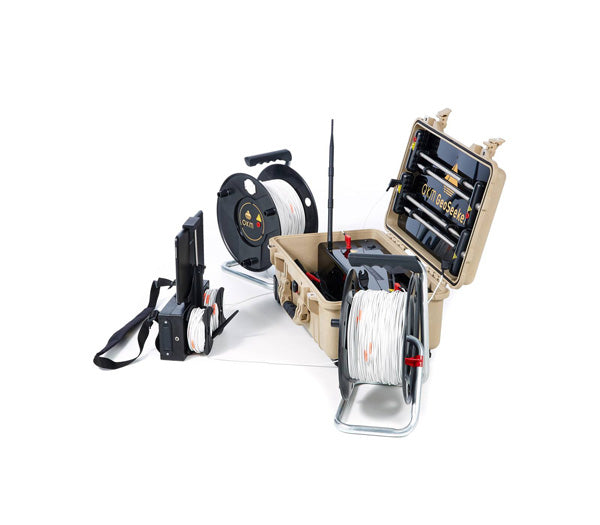

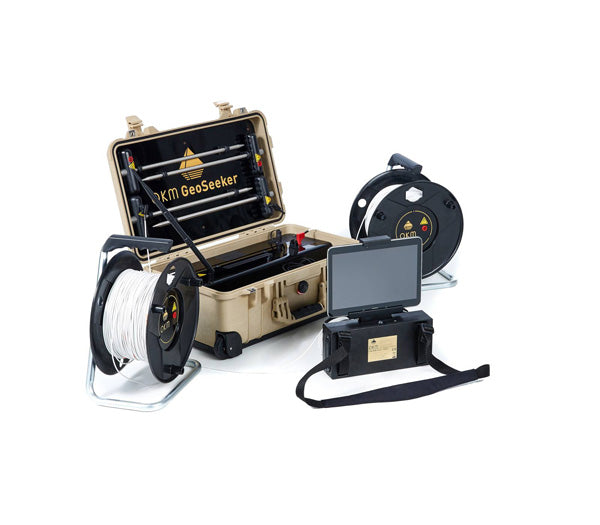

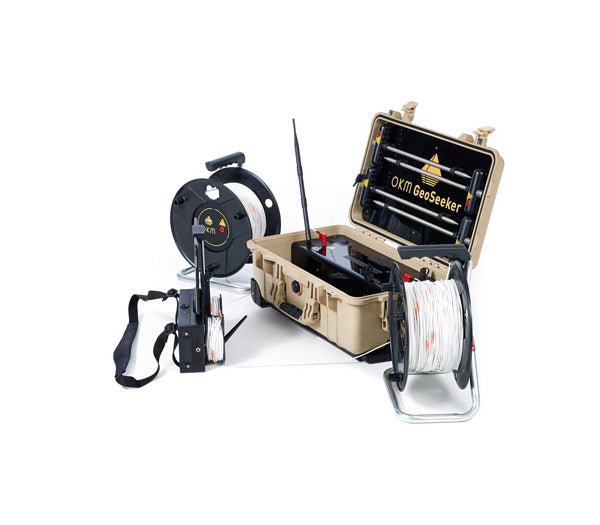

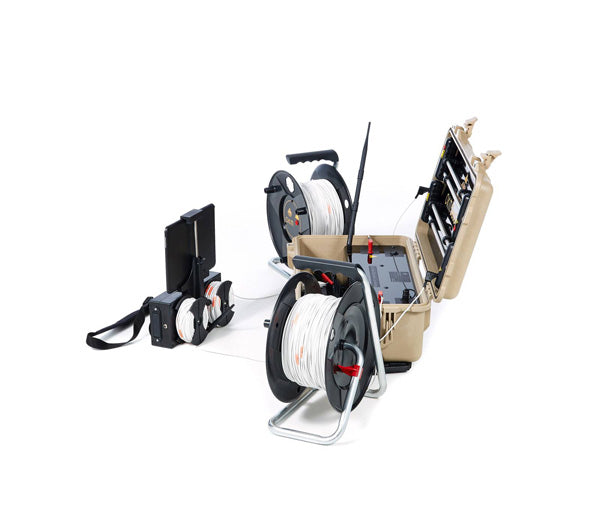

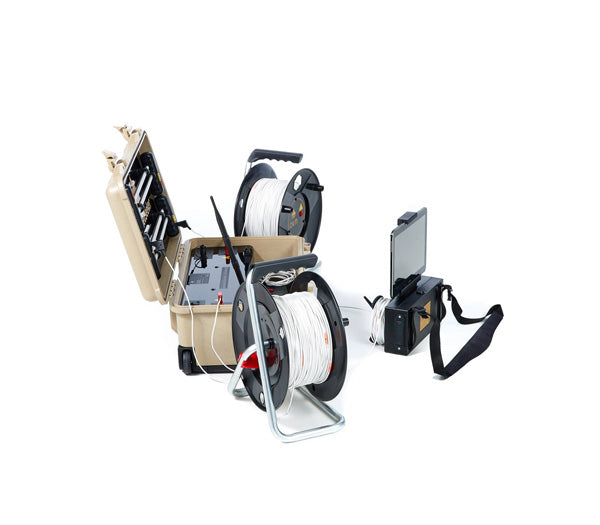

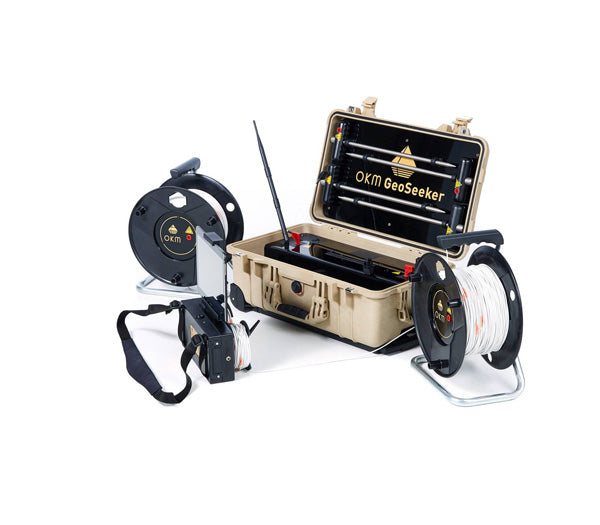

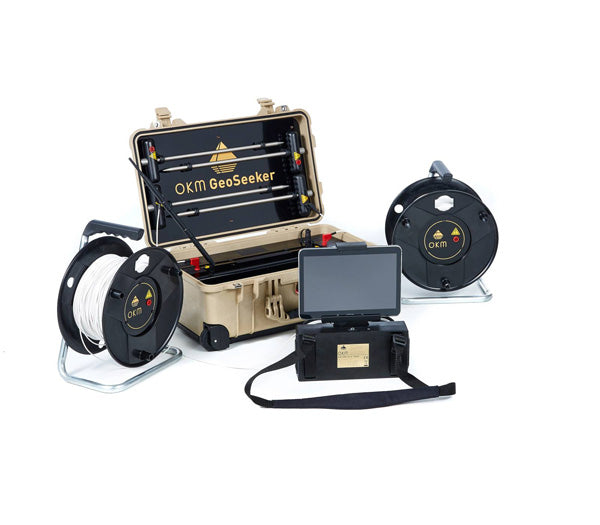

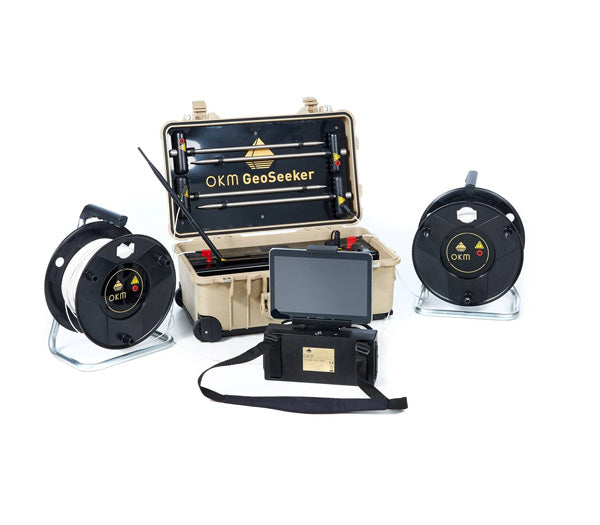

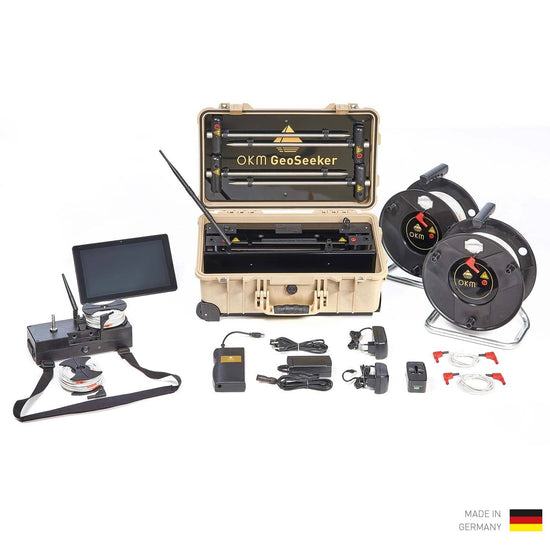

| 1x Controller incl. charger |
| 8x AA battery 1.5 V (rechargable) |
| 1x Android Tablet |
| 4x Electrode |
| 2x Power Cable Drum (Ø 290 mm) |
| 2x Voltage Cable Drum (Ø 120 mm) |
| 2x Connecting Cable (2 m) |
| 1x USB Flash Drive with OKM Visualizer 3D Studio Professional Edition |
| 1x Power Pack PP20V3A01 |
| 1x Power Box incl. charger |
| 1x Waterproof and shock-resistant Protector Case |
| 1x Quick Start Guide |
| OPTIONAL Pre-configured Windows Notebook |
The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.
Voltage Cable Drums (Ø 120 mm)
- Dimensions (H x W x D): 360 x 290 x 200 mm
- Weight: 6.5 kg
- Cable length: 255 m
- Markers: 15
Power Cable Drums (Ø 290 mm)
- Dimensions (H x W x D): 120 x 120 x 45 mm
- Weight: 0.65 kg
- Cable length: 26 m
- Markers: 25
Controller (Receiving Unit)
- Dimensions (H x W x D): 130 x 270 x 110 mm
- Weight: 0.6 kg / 2.1 kg (with mounted cable reers and batteries)
- Sample rate: 4096 Hz (64 times oversampling of a 512 samples mean value)
- Operating time: min. 16 hours (charged batteries)
- Charging Time: 3 h / max. 5 h (empty batteries)
- CPU: 80 MHz Cortex M3
- ADC: 16 bit
- Communication with Tablet PC: WLAN-Accesspoint, 2.4 GHz band, channel 6, WPA2
- Communication with Power Box: 2.4 GHz band, on-demand, proprietary
- Effective Range: –1400 to +1400 mV
- Measurement Period per Scan Point: min. 16 seconds
- Power Supply (8 AA batteries): 8 – 14 V DC
- Input (for Charger): 12 V DC / 1.5 A
- Input Resistance (static): approx. 12 MΩ
Power Box (Sending Unit)
- Dimensions (H x W x D): 230 x 550 x 360 mm
- Weight: 15.8 kg / 18 kg (with mounted Electrodes)
- Operating time: 100 h (min. Power) / 40 h (average Power) / 8 h (max. Power)
- Charging Time: max. 8 hours
- Output: max. 390 V / 0.5 A / 20 W
- Communication with Controller: 2.4 GHz band, on-demand, proprietary
- Input (for Charger): 24 V DC / 2 A
- Internal Power Supply: Lead Acid Battery (2 x 12 V, 10 Ah)
Electrodes
- Dimensions (H x W x D): 440 x 120 x 35 mm
- Weight: 0.52 kg
The technical data are average values. Minor deviations are possible during operation.
Thanks to GeoSeeker and OKM´s water detection technology, the water scarcity in Mali is a problem of the past.
Searching for ground water deposits in 90 meters depth: No problem for the OKM GeoSeeker. Easy to use and working great even in mountain area.
OKM uses geoelectronic technology. Happy using GeoSeeker for several years and have bought most recent version now
External Android tablet helps using and analysing the results at the end of measuring process! Very pleased and thanks for your great help!
